Subject : Re: [Anaglyphs] Macro adapter for the W3
From : "Imre dr.Zsolnai-Nagy"
To : anaglyphs(-at-)yahoogroups.com
Date : Wed, 6 Apr 2011 20:58:16 +0200

91797_the_adapter.jpg : (274K)



Hi Bill!
Here in Hungary the russian beamsplitter is about 20 USD.

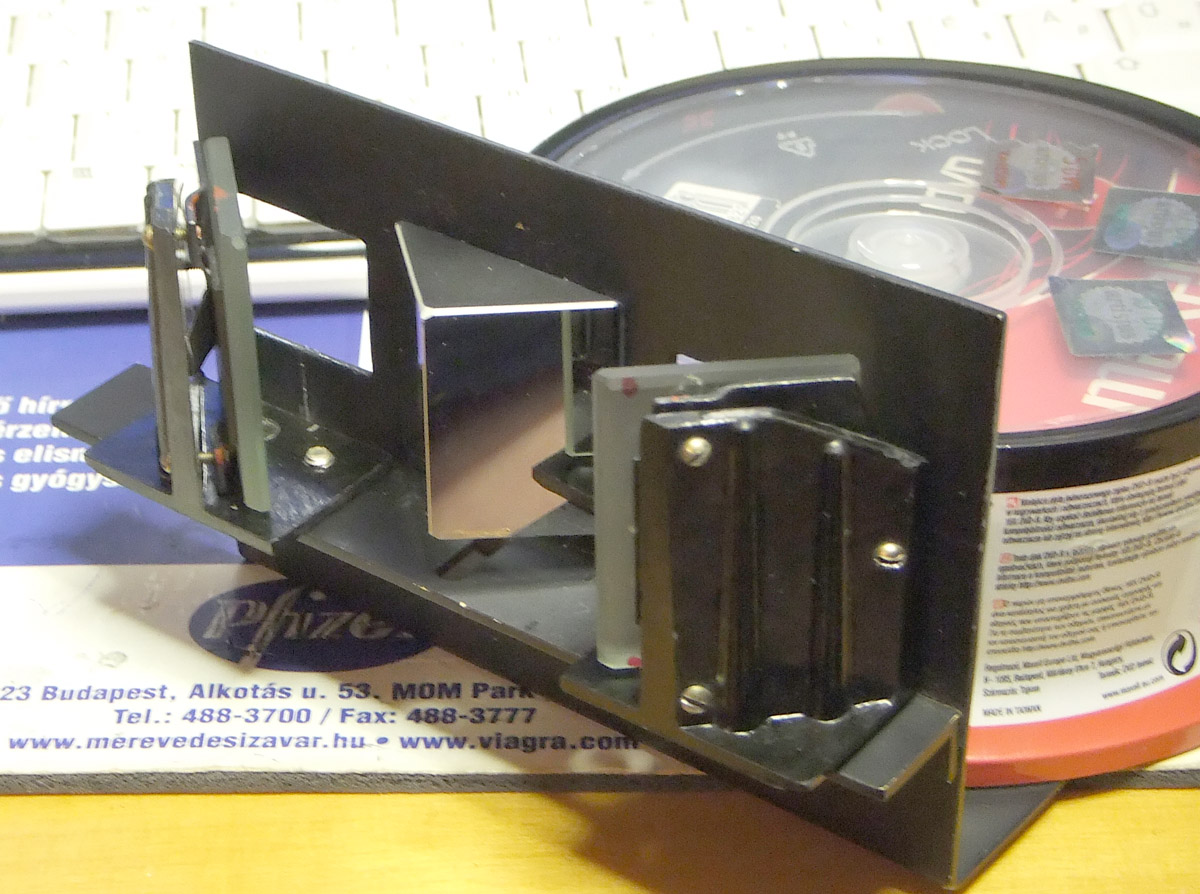

I attached the image of the job.
The lateral mirrors I can move lateraly and I control the result on the LCD of the Fuji.
The only curiosity: the middle "mirror prism" isnt 90 degrees, it is 96 degrees, so I must adjust the lateral mirrors for parallel position with the central mirrors.
Imre

2011/4/6 William Silverman <wmagman(-at-)gmail.com>


Hi Imre,

Great results!!!
Would you be good enough to send a few images of how you adapted this to the Fuji W3, and also give us an idea of the price of the beam splitter in US dollars.

I look forward to seeing more of your results with this set-up. The second image was very yellowish is color, but the other two are most impressive.

Best regards,
Bill Silverman


On Wed, Apr 6, 2011 at 2:14 PM, Imre dr.Zsolnai-Nagy <imrezsolnainagy(-at-)gmail.com> wrote:


Hi!
I finished the macro adapter for W3.
I used the pieces of an old russian beamsplitter:
http://www.viewmaster.co.uk/htm/skf1.asp

Imre

--
http://www.conversion3d.freeweb.hu
http://imre3d.axo.hu







--
http://www.conversion3d.freeweb.hu
http://imre3d.axo.hu
